Possible entity nesting
|entity below can be nested in entity||branch||statement||method||class||file||package|
N - new in Clover 3.2.0
1 - there are helper methods PackageInfo.getClasses() / getAllClasses() which returns classes from a package
2 - there are helper methods PackageInfo.getClassesIncludingSubPackages() / getAllClassesIncludingSubPackages() searching for classes in nested packages
From a logical perspective a branch should be nested inside a statement, e.g. "if (a > 5) .." has one statement with true and false branches in it. However, due to performance reasons, branches are kept aside statements, directly under a method. It's planned to add branches also under a class and a file in one of future Clover releases.
Since Clover 3.2 it's possible to nest classes inside classes. This can be used to model an inner class such as:
Clover does not keep inner classes this way, however. All inner classes are kept directly under a file. One of the reasons for such approach is a separation of code metrics, i.e. a complexity of an inner class B does not count to the complexity of a parent class A.
Clover does not keep anonymous inline classes as a class entity in the model. Instead of this, methods of an anonymous class are being added to the parent class. This is a legacy issue.
Note that Clover 3.2 keeps lambda functions as classes declared under a method. Due to fact that lambda functions can be converted to a functional interface and vice versa, we plan to fix it and make it consistent in a future Clover release. Therefore, anonymous inline classes will have their own entity in a database model and will be kept under an enclosing method.

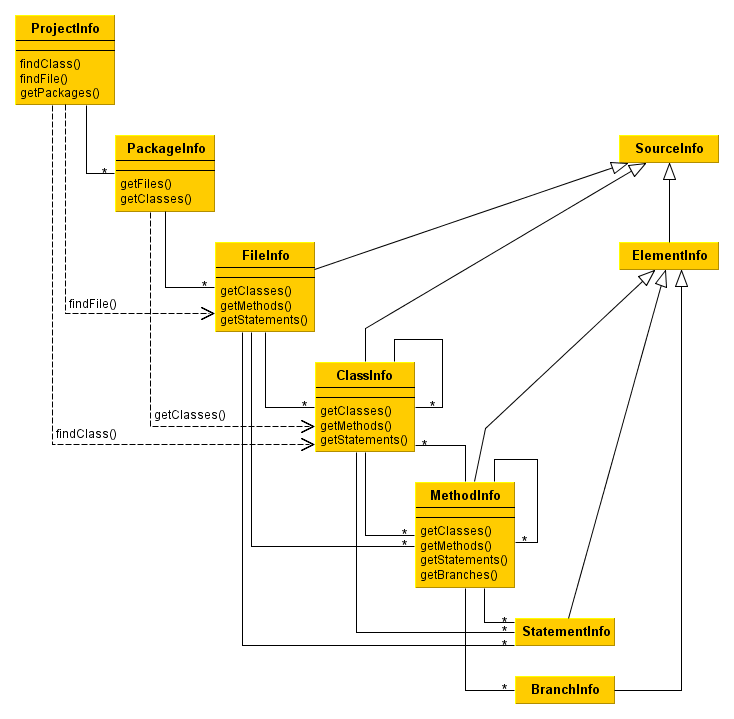

Interfaces describing the database structure are located in the com.atlassian.clover.api.registry package (JavaDoc).
They can be grouped into few categories:
- basic entities stored in a database are represented by ProjectInfo, PackageInfo, FileInfo, ClassInfo, MethodInfo, StatementInfo and BranchInfo
- these entities implement HasPackages, HasFiles, HasClasses, HasMethods, HasStatements or HasBranches interfaces which allow to navigate to their children
- HasParent, EntityContainer and EntityVisitor allows to get to the parent entity (note that some entities might have different parent types)
- HasMetrics, HasAggregatedMetrics returns information about code metrics
- helper interfaces describing data structures such as MethodSignatureInfo, Annotation, AnnotationValue etc
Reading from a Clover database
An example how to read a content of a database.
If you'd like to read a database without coverage, then replace "CloverDatabase.loadWithCoverage(..)" by "new CloverDatabase(initstring)"
Writing to a Clover database
Creating a global coverage recording file
In addition to the Clover database, which holds information about code structure, you need also to generate a global coverage recording file. It keeps information about hit counts for every code element registered in a database (i.e. how many times given method/statement/branch was executed).
You can find these code samples on https://github.com/openclover/clover-examples.
