Welcome to the Clover-for-Ant tutorial. This document will walk you through the process of integrating Clover with an Ant build, gradually exploring Clover's more advanced code coverage features along the way.
On this page:
- Step 1. Compiling and running
- Step 2. Adding Clover targets
- Step 3. Testing with Clover
- Step 4. Creating a report
- Step 5. Improving coverage
- Next steps
Part one of this tutorial focuses on the creation and interpretation of Clover 'current' reports. Current reports display graphical and numerical data relating to the most recent coverage data collected for the project. This tutorial covers the initial creation of coverage data before stepping you through how to generate and interpret coverage reports. We'll then look at how to improve the coverage achieved by tests and regenerate the coverage reports. This section covers the very basic features of Clover and is an important first step for all users.
In this tutorial we will compile and unit-test the Money library provided in the
tutorial/src directory, then use Clover to determine how well the unit tests actually
test the library.
In the first step, we will compile the Money library and run tests against it.
Step 1. Compiling and running
In this step we will compile the library and run the tests against it without using Clover to check
that everything is working correctly before including Clover in the next step. In the
tutorial directory you will find the initial build file which contains targets for
compiling, running and cleaning the build.
To compile the java files, use the command
Output should be similar to the following:
This shows that the java source files have been compiled and class files have been placed in the
Running the tests
To run the JUnit tests, use the command
Output should be similar to the following:
This shows that all the tests have been run and have passed. We have now compiled the Money library, and ran tests against it. In the next step, we will add Clover targets and properties to the build file to enable measurement of code coverage.
Step 2. Adding Clover targets
Now that we have compiled the code and run unit tests, we are ready to add Clover targets and properties to the build file so we can measure the code coverage of the tests. Modifying the build file is trivial. Firstly we need to add a target to enable and configure Clover for the build.
Adding Clover task definitions
For this tutorial, ensure that the property
has been defined as the path to your 'clover.jar' file. Hence, if you followed the Adding to Ant's build.xml instructions and have only added the
Clover 'taskdef' resource to your 'build.xml' file, you'll need to redefine this resource to
match the format described in this step.
build.xml file into your favorite text editor and add the Clover Ant task and
This assumes that the
left in the unpacked Clover distribution from which this tutorial is being done. If you have
clover.jar elsewhere, adjust the path accordingly.
These lines define the Clover Ant tasks which can then be used within the build file.
Adding a target to enable Clover
Add a target called
with.clover which will enable and configure Clover for a build:
Adding Clover to the classpath
clover.jar needs to be in both compilation and runtime classpath. To achieve this,
add the line in marked below to the
build.classpath Ant path:
Adding <clover-clean> to the clean target
It is advisable to add the
/> task to the
target. This will delete the Clover database when the
clean target is executed.
Once you have made these changes, save the
build.xml file. We will add some more Clover
targets later to perform coverage reporting, but first we will re-compile the Money library with
Clover and re-run the tests to obtain coverage data.
Step 3. Testing with Clover
We are now ready to measure the coverage of the tests over the Money library.
Compile with Clover
Ensure that your build has been cleaned by running
ant clean. This deletes all class
files from previous compilations.
Compile your code with Clover using the command
ant with.clover compile.
You will get output similar to the following:
The result of this process is that your source files have been instrumented by Clover and then compiled as usual. As part of the instrumentation process, Clover creates a database that will be used during the coverage recording and report process.
Running the tests
We now need to run the tests again, using the command
ant test. This command will run
the tests, this time measuring coverage. Output from Ant will be the same as a normal test run:
During this test run, Clover measured the code coverage of the tests and wrote the coverage data to disk.
In the next step we'll generate a coverage report from this data to see how well the tests actually cover the Money library.
Step 4. Creating a report
We are now ready to produce a coverage report. This section will focus on producing a Clover HTML
report. For information on how to generate a PDF report see the
or for other types of Clover reports see the
Adding a Clover report target
build.xml file in a text editor and add the following
create a HTML report:
> task is a
simplified version of the
> task. As no
historydir attribute has been specified, it uses the current coverage data. Historical
reports, which show the progress of coverage over the life of the project, are discussed later in
this tutorial (see Part 2 - Historical
Reporting). The current report is to be in HTML format, written to the directory
and with the title "
Clover Demo". The output directory
is relative to the path of the Ant build file. In this case, the directory
build/clover_html will be nested within
tutorial as this is the location
Generating the report
Create a HTML report with the command
ant clover.report. You will get output similar to
You can now view the report by opening the file
a web browser. See 'Current' Report for details about interpreting this
In the next step, we will enhance the JUnit tests to improve code coverage of the Money library.
Step 5. Improving coverage
After having a look at the coverage report, you'll notice that coverage is not 100%. Although not always possible, it is best to get as close to full coverage as you can. Think of it this way: every line that isn't covered could contain a bug that will otherwise make it into production. You should certainly aim to cover all of the code that will be executed under normal operation of the software.

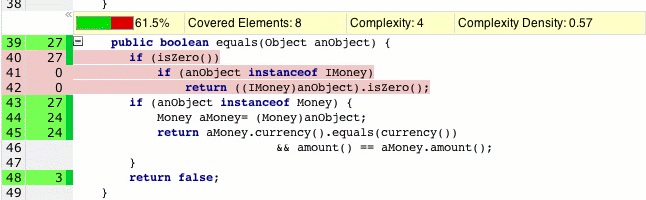

One method in the Money library that is not fully covered is the
equals() method in the
Money class (lines 40-42 as seen below). The first few lines of this method handle the special case
when the Money value is zero. The coverage report shows that the code to handle this has not been
covered by the tests. Line 40 has been executed 27 times, but since it has never evaluated to
it has not been fully covered and is therefore in red. It follows then that the two successive lines
have never been executed.
We can now improve the tests so that this section of code is covered. To do this, make the following additions (shown in bold) to the
Declare the variable
f0USD in the
Finally, the following test needs to be added:
After these amendments have been made, compile and run tests again (by running
then re-generate the HTML report (by running
ant clover.report). You will see that the
Money class now has 100% coverage.
